F05

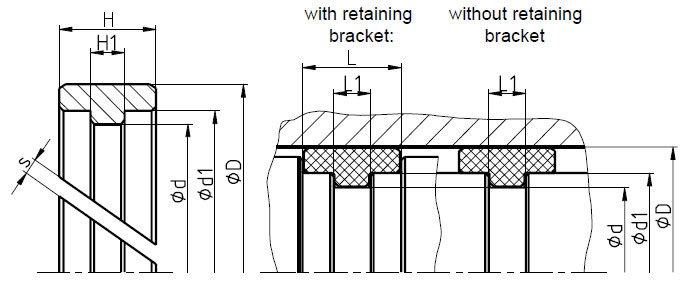

Guide Ring with integrated collar on inside diameter, for piston applications. Split and non-split designs available.
| Temperature Range | Max Speed | Max Pressure | Material |
| -50 °C … to +100 °C | 4 m/s | 25 N/mm² | ECOTAL |
| -50 °C … to +100 °C | 4 m/s | 25 N/mm² | ECOMID |
| -200 °C … +200 °C | 4 m/s | 3 N/mm² | ECOFLON 2 |
| -200 °C … +200 °C | 5 m/s | 4.5 N/mm² | ECOFLON 40% Bz |
| -200 °C … +200 °C | 5 m/s | 7.5 N/mm² | ECOFLON 60% Bz |
| -40 °C … +130 °C | 1 m/s | 90 N/mm² | ECOTEX |
