Hydraulic, double-acting

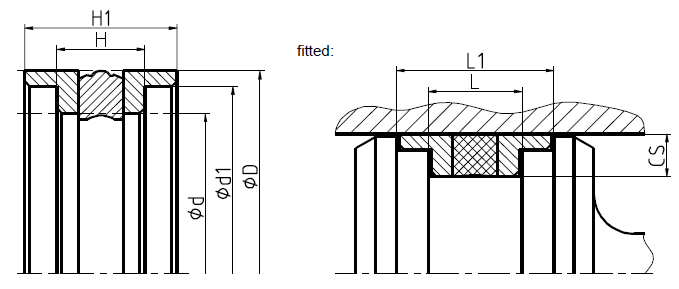

Space-saving, compact Piston Seal with integrated guiding elements. Excellent static sealing capacity. By selecting a different material, this profile can be adapted to suit diverse temperatures and media. This profile is suitable for small housings.

 Temperature Range  Max Speed  Max Pressure Sealing Element Back-up Ring
 -30 °C … to +100 °C 0.5 m/s 250 bar (3600 psi) ECORUBBER 1 ECOTAL/ECOMID
 -20 °C … to +200 °C 0.5 m/s 250 bar (3600 psi) ECORUBBER 2 ECOFLON 2
-20 °C … to +200 °C 0.5 m/s 250 bar (3600 psi) ECORUBBER 2 ECOPAEK
