Hydraulic, double-acting

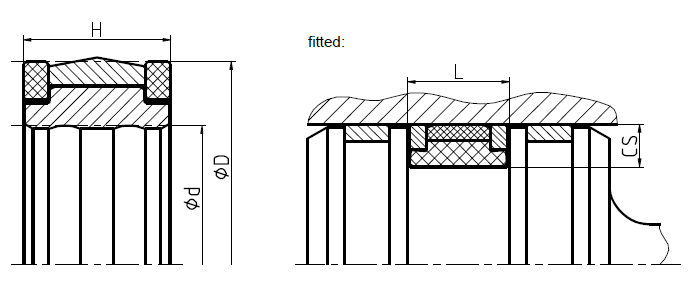

Profile-ring activated, compact Piston Seal with integrated back-up rings, excellent static sealing capacity. External guiding elements are required.
| Temperature Range | Max Speed | Max Pressure | Energizer | Sealing Element | Back-up Ring |
| -30 °C … to +100 °C | 0.5 m/s | 400 bar (5800 psi) | ECORUBBER 1 | ECOPUR | ECOTAL/ECOMID |
| -20 °C … to +100 °C | 0.5 m/s | 400 bar (5800 psi) | ECORUBBER 1 | H-ECOPUR | ECOTAL/ECOMID |
| -30 °C … to +100 °C | 0.5 m/s | 400 bar (5800 psi) | ECORUBBER 1 | T-ECOPUR | ECOTAL/ECOMID |
| -20 °C … to +100 °C | 0.7 m/s | 400 bar (5800 psi) | ECORUBBER 1 | S-ECOPUR | ECOTAL/ECOMID |
| -30 °C … to +100 °C | 0.5 m/s | 400 bar (5800 psi) | ECORUBBER 1 | G-ECOPUR | ECOTAL/ECOMID |
