Hydraulic, single-acting

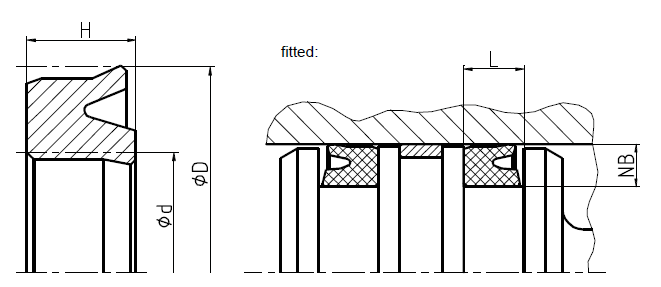

Asymmetric Piston Seal for standard applications. Design provides stable fit in the housing with ultimate sealing effect over a wide temperature range. Avoids extensive drag pressure. Use in a back-to-back arrangement with a wear-ring in-between for double-acting pistons or to separate different fluids.

 Temperature Range  Max Speed  Max Pressure Material
 -30 °C … to +110 °C  0.5 m/s  400 bar (5800 psi) ECOPUR
 -20 °C … to +110 °C  0.5 m/s  400 bar (5800 psi) H-ECOPUR
-20 °C … to +110 °C  0.5 m/s  400 bar (5800 psi) S-ECOPUR
 -50 °C … to +110 °C  0.5 m/s  400 bar (5800 psi) T-ECOPUR
 -30 °C … to +110 °C  0.5 m/s  400 bar (5800 psi) G-ECOPUR
