Hydraulic, single-acting

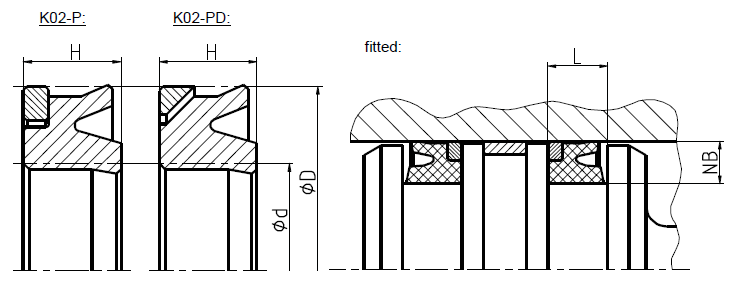

Asymmetric Piston Seal for standard applications as per K01-P, but due to its design with an active back-up ring, it is suitable for higher pressure or larger extrusion gaps.

K02-PD is recommended for short housings.

 Temperature Range  Max Speed  Max Pressure Sealing Element Back-up Ring
-30 °C … +100 °C  0.5 m/s 700 bar
(10.000 psi)		 ECOPUR ECOTAL/ECOMID
-20 °C … +100 °C  0.5 m/s 700 bar
(10.000 psi)		 H-ECOPUR ECOTAL/ECOMID
-20 °C … +100 °C  0.7 m/s 700 bar
(10.000 psi)		 S-ECOPUR ECOTAL/ECOMID
-50 °C … +100 °C  0.5 m/s 700 bar
(10.000 psi)		 T-ECOPUR ECOTAL
-40 °C … +100 °C  0.5 m/s 700 bar
(10.000 psi)		 T-ECOPUR ECOMID
-30 °C … +100 °C  0.5 m/s 700 bar
(10.000 psi)		 G-ECOPUR ECOTAL/ECOMID
