Hydraulic/pneumatic, single-acting

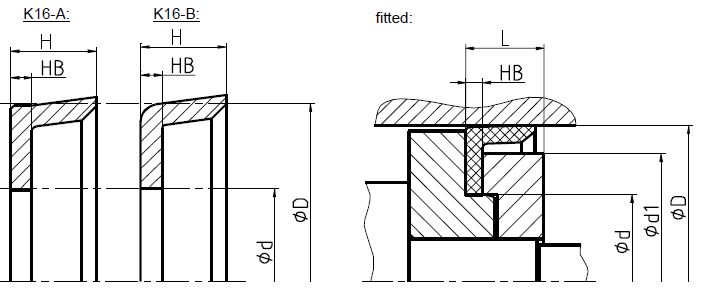

Simple cup seal, usually fixed on the piston by means of a clamping plate. Mainly used for replacement in old hydraulic and pneumatic cylinders or for low-grade secondary applications. Also used for food filling / portioning equipment.

 Temperature Range  Max Speed  Max Pressure  K12T
-30 °C … +110 °C 0.5 m/s 600 bar (8700 psi) ECOPUR
-20 °C … +110 °C 0.5 m/s 160 bar (2300 psi) H-ECOPUR
-50 °C … +110 °C 0.5 m/s 160 bar (2300 psi) T-ECOPUR
-20 °C … +110 °C 0.7 m/s 160 bar (2300 psi) S-ECOPUR
-30 °C … +110 °C 0.5 m/s 160 bar (2300 psi) G-ECOPUR
-30 °C … +100 °C 0.5 m/s 160 bar (2300 psi) ECORUBBER 1
-25 °C … +150 °C 0.5 m/s 160 bar (2300 psi) ECORUBBER-H
-20 °C … +200 °C 0.5 m/s 160 bar (2300 psi) ECORUBBER 2
-50 °C … +150 °C 0.5 m/s 160 bar (2300 psi) ECORUBBER 3
