Hydraulic, single-acting

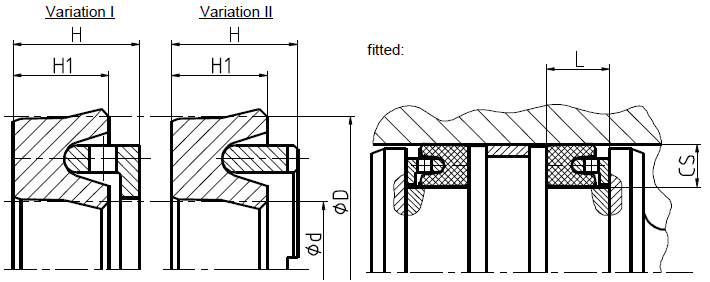

Symmetric Piston Seal with support ring for simple applications to serve a repair purpose. This profile is not recommended for new designs (profile K01-P is preferred). A retainer ring in an angled design is possible.
Talk to us now
Symmetric Piston Seal with support ring for simple applications to serve a repair purpose. This profile is not recommended for new designs (profile K01-P is preferred). A retainer ring in an angled design is possible.
Temperature Range | Max Speed | Max Pressure | Retainer Ring |
-30 °C … +100 °C | 0.5 m/s | 600 bar (8700 psi) | ECOTAL/ECOMID |
-20 °C … +100 °C | 0.5 m/s | 400 bar (5800 psi) | H-ECOTAL/ECOMID |
-40 °C … +100 °C | 0.7 m/s | 400 bar (5800 psi) | ECOMID |
-50 °C … +100 °C | 0.5 m/s | 400 bar (5800 psi) | ECOTAL |
-20 °C … +100 °C | 0.5 m/s | 400 bar (5800 psi) | ECOTAL/ECOMID |
-30 °C … +100 °C | 0.5 m/s | 400 bar (5800 psi) | ECOTAL/ECOMID |
