Hydraulic, single-acting

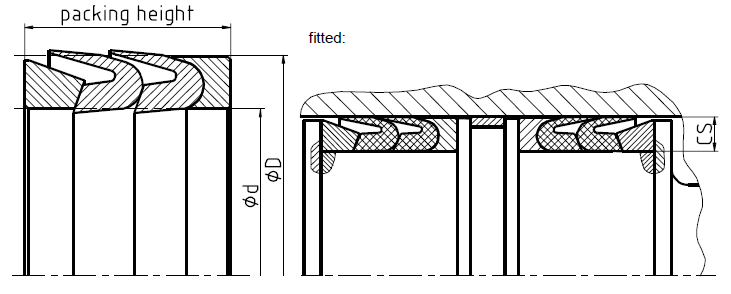

Chevron sealing set, design with extremely flexible sealing lips for difficult operating conditions e.g. bad guiding or a large tolerance range. Available as a total chevron sealing set as well as intermediate chevrons only (in the case of metal male and female adapters).

 Temperature Range  Max Speed  Max Pressure  Thrust Collar  Sealing Element  Back-up Ring
-30 °C … +100 °C 0.5 m/s 500 bar (7200 psi) ECOTAL/ECOMID ECOPUR ECOTAL/ECOMID
-20 °C … +100 °C 0.5 m/s 500 bar (7200 psi) ECOTAL/ECOMID H-ECOPUR ECOTAL/ECOMID
-40 °C … +100 °C 0.5 m/s 500 bar (7200 psi) ECOMID T-ECOPUR ECOMID
-50 °C … +100 °C 0.5 m/s 500 bar (7200 psi) ECOTAL T-ECOPUR ECOTAL
-20 °C … +100 °C 0.7 m/s 500 bar (7200 psi) ECOTAL/ECOMID S-ECOPUR ECOTAL/ECOMID
-30 °C … +100 °C 0.5 m/s 500 bar (7200 psi) ECOTAL/ECOMID G-ECOPUR ECOTAL/ECOMID
