Hydraulic, single-acting

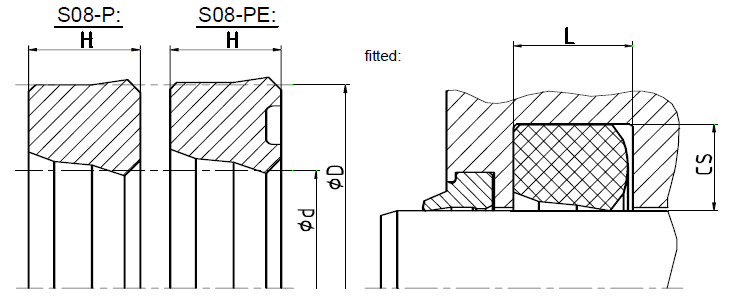

Asymmetric compact Rod Seal, interference- fit on outside diameter maintains stable fit in the housing. Compact design mainly used to seal high viscosity fluids or for extremely small housings. Not suitable for high speed applications. S08-p is a compact design, no groove.

 Temperature Range  Max Speed  Max Pressure Material
-30 °C … to +110 °C 0.3 m/s 400 bar (5800 psi) ECOPUR
-20 °C … to +110 °C 0.3 m/s 400 bar (5800 psi) H-ECOPUR
-20 °C … to +110 °C 0.4 m/s 400 bar (5800 psi) S-ECOPUR
-50 °C … to +110 °C 0.3 m/s 400 bar (5800 psi) T-ECOPUR
-30 °C … to +110 °C 0.3 m/s 400 bar (5800 psi) G-ECOPUR
