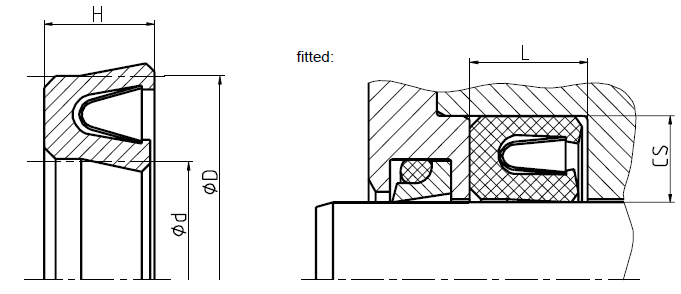

PTFE Rod Seal, single-acting

Finger-spring activated, asymmetrical PTFE Rod Seal. Low friction and good dry running properties, excellent chemical and thermal resistance. Mainly used in chemical, pharmaceutical and food industries.

 Temperature Range  Max Speed  Max Pressure Sealing Element Spring
-200 °C … to +260 °C 15 m/s 100 bar (1450 psi) ECOFLON 1 1.4310
-200 °C … to +260 °C 15 m/s 160 bar (2300 psi) ECOFLON 2 1.4310
-200 °C … to +260 °C 15 m/s 160 bar (2300 psi) ECOFLON 3 1.4310
-200 °C … to +80 °C 15 m/s 2o0 bar (2900 psi) ECOPE 1.4310
