Hydraulic, double-acting

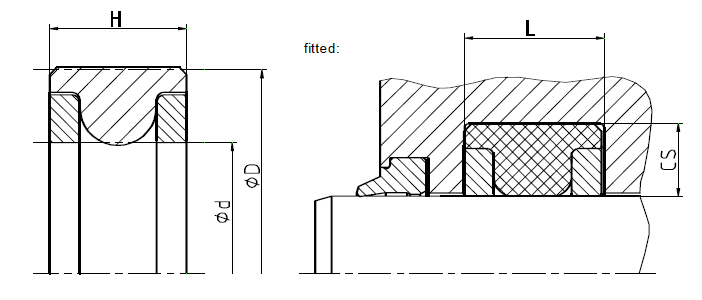

Space-saving, compact Rod Seal, suitable for standard O-ring housings. Profile has advantages compared to an O-ring: has integrated active back-rings for high pressure applications; is designed with interference-fit on outside diameter which maintains non-twisting in dynamic applications.

 Temperature Range  Max Speed  Max Pressure Sealing Element Back-up Ring
-30 °C … to +100 °C 0.5 m/s 700 bar (10.000 psi) ECORUBBER 1 ECOTAL/ECOMID
-20 °C … to +100 °C 0.5 m/s 700 bar (10.000 psi) ECORUBBER-H ECOTAL/ECOMID
-20 °C … to +200 °C 0.5 m/s 700 bar (10.000 psi) ECORUBBER 2 ECOPAEK/ECOFLON
-20 °C … to +150 °C 0.5 m/s 700 bar (10.000 psi) ECORUBBER-H ECOPAEK/ECOFLON
