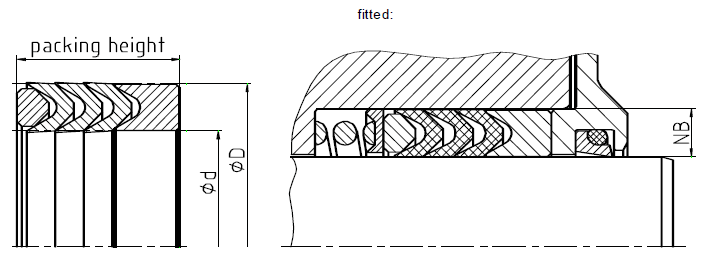

PTFE Chevron Sealing Set, single-acting

Optimized for low pressure, unequal-angled chevron design results in good contact pressure even in low pressure range. External spring pretension necessary. Mainly used in chemical, pharmaceutical and food industries.



 Temperature Range  Max Speed  Max Pressure S25-F S26-F
-150 °C … to +200 °C 1.5 m/s 100 bar (1450 psi) ECOFLON 2 ECOFLON 1
